Double Chamber Vacuum Sealers

Double Chamber Vacuum Sealers

double chamber sealer

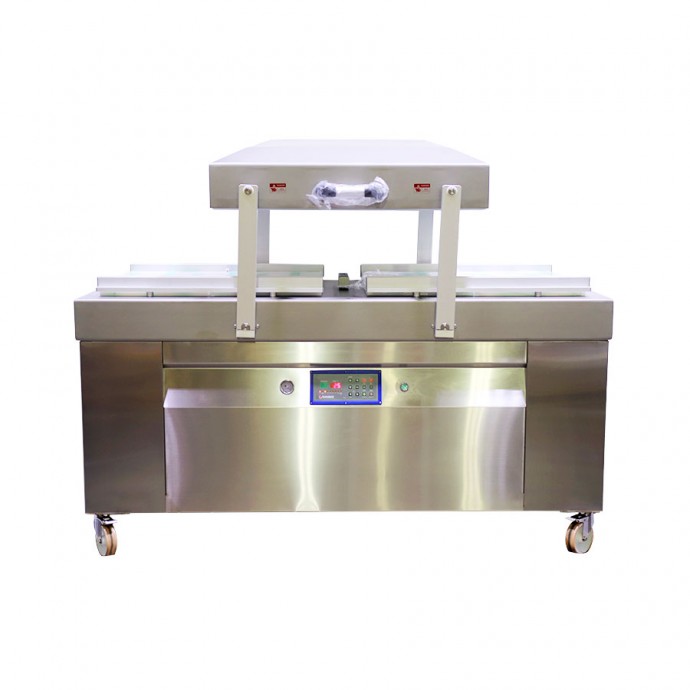

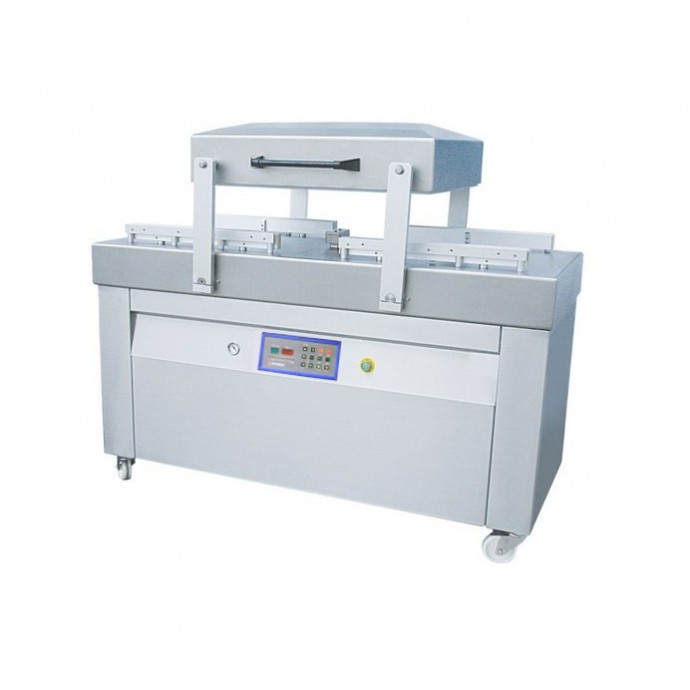

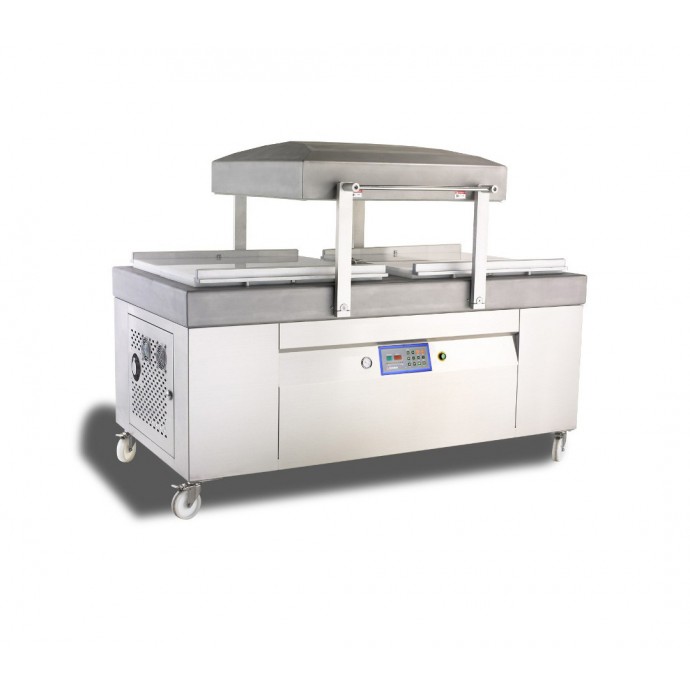

Double chamber vacuum sealers as the name implies are like two machines in one housing. There are units that feature two lids and two entirely separate vacuum cavities. However, the most common type of double chamber machines are the swing lid units. These machines feature either two separate vacuum cavity areas or one large flat working deck and one lid that is swung back and forth between the vacuum working spaces. This design offers the best production throughput as it keeps your operators busy unloading and reloading one side of the vacuum workspace while the other side is cycling instead of waiting while a single vacuum working space is completing the cycle. This high throughput capability is a very important part of why the double chamber models have become known as the “workhorse” of vacuum chamber sealer models. When this is combined with all # 304 stainless steel construction, high performance Busch vacuum pumps and a water resistant (IP-56) microprocessor control system you have a machine that is ready for high volume vacuum sealing operations and extra heavy use (two 8 hour shipts per day) So whether your product is a food related, an electronics related product needing to be dry-packed or anything in between a double chamber vacuum sealer will get the job done.

What is your greatest challenge? If you are looking for a solution that requires a specific dimension, ultra-low oxygen levels, or extremely rapid vacuum cycle IMPAK’s engineering team will provide you with the solution that fits your need. Learn more.

  CHDC-530 CHDC-640 CHDC-650 CHDC-800 CHDC-860 CHDC-900
Seal Lengths 21.2" / 540mm
(front and back)
25.2" / 640mm
(front and back)
25.2" / 640mm
(front and back)
31.5" / 800mm
(front and back)
34.6" / 880mm
(front and back)
39.3" / 1000mm
(front and back)
Distance Between The Seal Bars 17.0" / 430mm 22.0" / 560mm 28.0" / 715mm 24.0" / 610mm 33.0" / 838mm 35.0" / 880mm
220V/1PH Optional (to 5HP) Optional (to 5HP) Optional (to 5HP) Optional (to 5HP) - -
Standard Voltage 220V/3PH/60HZ 220V/3PH/60HZ 220V/3PH/60HZ 220V/3PH/60HZ 220V/3PH/60HZ 220V/3PH/60HZ
#304 Stainless Steel Construction check check check check check check
Seal System Impulse Impulse Impulse Impulse Impulse Impulse
Bi-active Seal Optional Optional Optional Optional Optional Optional
PNC-01 Controller check Optional check check check check check
Gas Flush Optional Optional Optional Optional Optional Optional
Emergency Stop Optional Optional Optional Optional Optional check
Auto-Lid System Optional Optional Optional Optional Optional check
Certified & Labeled US, CSA & NSF check check check check check check


Benefits of a Double Chamber Sealer

labelSwing lid design delivers greater production throughput as your operators are unloading and reloading one side of the flat working deck while the other side is being vacuumed and sealed.

labelThe flat working deck makes cleaning and sanitizing easy and fast.

labelLid spring system reduces operator fatigue.

labelToolless seal bar removal & replacement minimizes down time dusring critical production.

Need precise control of time, temperature and pressure?

Upgrade to the Intelligent Sealing System iS2. Digital control over time, temperature and pressure, plus a touch screen interface, recipe storage and more.
