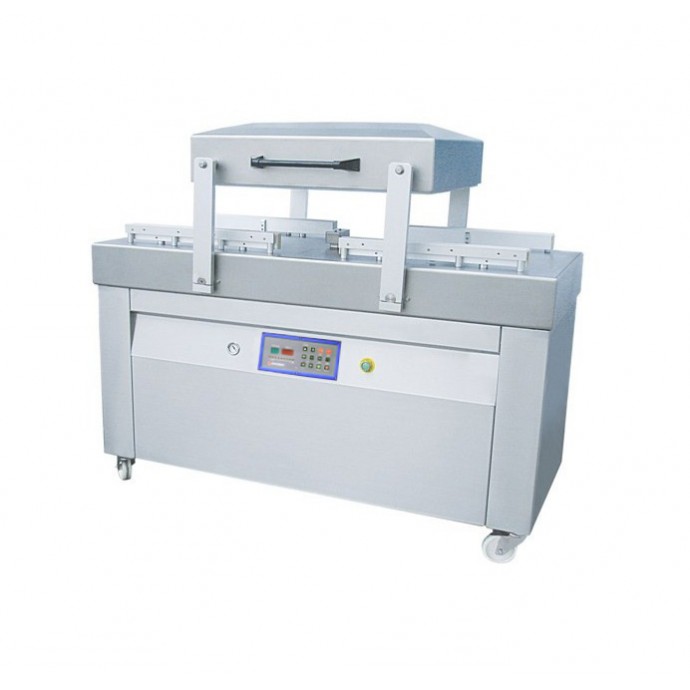

chdc-650 double chamber vacuum sealer

CHDC-650

Double Chamber Vacuum Sealer

Starting Price: $16,555.00
Standard Features:

  • • PNC-01 Water Resistant (IP-56) Microprocessor Control Panel
  • • Stainless Steel Construction
  • • Flat chamber for easy cleaning
  • • Bladder Activated Sealing
  • • Busch Vacuum Pump
  • • 10mm Wide Seals
  • • Water resistant electrical box
  • • Durable, removable aluminum cushion bar
  • • Heavy-Duty Casters
  • • Air Assist
  • • Oil change indicator
  • • High-density plastic filler plates
  • • Pump overload warning indicator
  • • Certified & labeled to meet UL, CSA & NSF

Note on Shipping

Please note for machine orders that require crating, we will not charge shipping at checkout. Once we have more final weight and crate dimensions, we will contact you with accurate freight costs to work out the best shipping option for you.

CHDC-650 Double Chamber Sealer

chdc-650 double chamber sealer

CHDC-650

Prepaid Price: $16,555.00
Quantity

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. Contact us for expedited orders.

Shipping costs will be calculated and advised via email


Need precise control of time, temperature and pressure?

Introducing the Intelligent Sealing System (iS2)

NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags


PRE-ORDER ITEM: AVAILABLE IN 4-6 WEEKS LEAD TIME


Better known as the “workhorses” within the vacuum chamber industry, our double chamber line of equipment is built to handle years of heavy use and abuse. You will not find an aluminum deck on these machines because they are built to last. Consisting of a fully enclosed stainless steel base with a reinforced chamber deck and heavy-gauge lid, these machines are anything but light duty. Understanding the high demands set forth by the industry no corners were cut in the construction of our CHDC series of chamber machines.

We build a complete line of double chamber equipment with items that range from 21” seal bars to over 39” and span a wide variety of widths.

For additional protection and increased function, we fit our double chambers with our PNC-01 programmable water-resistant, IP56-rated control panel. Another feature that sets us apart is the quick disconnect seal bars that can be removed and installed in a matter of seconds. With these easy-to-disconnect seal bars, there is no need to wait for maintenance to show up with tools when a seal wire breaks. By simply having a spare bar on hand, you can be back up and running in under a minute without any special tools.

Time is money in heavy usage applications and we have taken this into account when designing our double chamber machines. Easily removable cushion bars and spacer boards make cleaning the deck surface fast and efficient. Our spring design that assists in lifting the lid provides a smooth and easy back and forth movement that operators will love.

All IMPAK vacuum chamber models are guaranteed to meet the standards of ETL, UL and NSF.

In order to be the best we believe in using the best, and that is why Busch vacuum pumps come standard in all of our double-chamber machines. Find out for yourself what thousands of others around the world have known for years; choose IMPAK for your future vacuum packaging needs.

IMPAK has supplied CHDC-650 machines for the following applications:

  • • Hi volume Sous Vide preparation
  • • Cheese packaging
  • • Vitamin ingredient bulk packaging
  • • Vacuum packaging laser printer cartridges
  • • Many more
OPTIONS:
  • • Single Phase motor available (up to 100m3/h,5hp)
  • • Chamber height - 10.0"
  • • Mechanical Knife Cut-Off System
  • • Pump Size
  • • Voltage
  • • Gas Flush
  • • Top and Bottom Seal
  • • Soft Air
  • • Air regulator
  • • Automatic lid transfer
For options, please contact sales@sorbentsystems.com

Chamber size 32.2" x 35.0"
Chamber depth 8.0"/200mm
Distance between seal bars 28/715mm
Seal bar length (A) 25.2x4/646mm
Vacuum pump capacity 100m3/h(5hp/4kw)
Voltage 230V/3ph/60Hz/9amp
Machine weight 1216 lbs. /552 kg
Machine size - L x W x H 62.0" x 40.3" x 43.4"

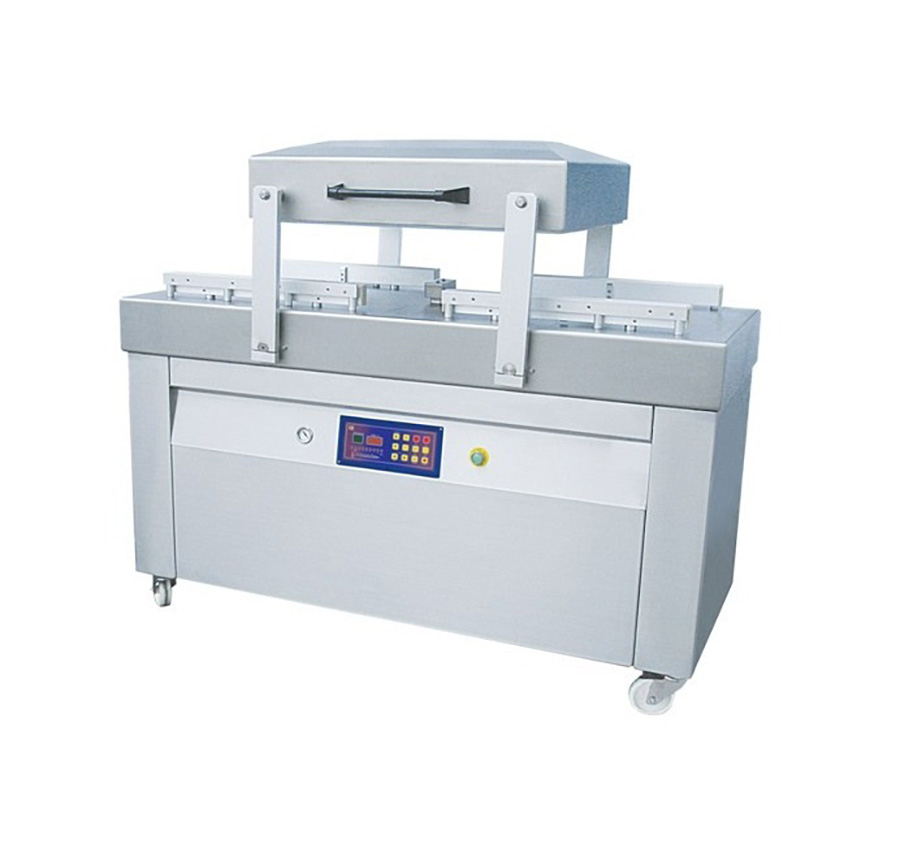

chamber sealer technical drawing

Swing Lid Double Chamber in Operation

Chamber Sealer Comparison - Vacuum With and Without Gas Flush
