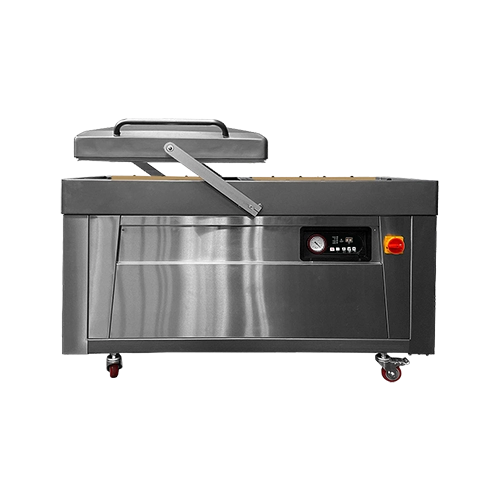

GCVDC-24FB
Castle Vak Double Chamber Vacuum Sealer
Starting Price: $6,294.62
The GCVDC-24FB is the largest of our Castle Vak Chamber Sealers. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer chamber sealer body that is sturdy, reliable, and easy to use.
The GCVDC-24FB comes with a Hygenic Stainless Steel Lid moving between the two chambers, and a a commercial grade, oil-lubricated, rotary-style vacuum pump. Take
advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-24LR one of the best options for high volume projects or small prosumer applications where reliability and safety are important.
Standard Features:
- • Stainless Steel Construction
- • Clear See-Through Lid
- • 10mm Flat Seal
- • Single or 3-phase options available
GCVDC-24FB Castle Vak Double Chamber Vacuum Sealer (1 Phase)
GCVDC-24FB

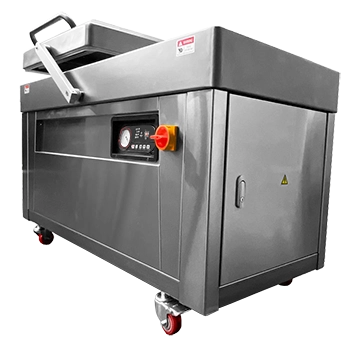

GCVDC-24FB3P Castle Vak Double Chamber Vacuum Sealer (3 Phase)
GCVDC-24FB3P
Introducing the Intelligent Sealing System (iS2)
The GCVDC-24FB is the largest option in our Gramatech Castle Vak line of chamber sealers. Featuring dual chambers and for 24" seal bars, you can double throughput quickly. As with all of the Gramatech chamber machines the GCVDC-24FB can meet UL and CSA safety standards (meet all the requirements for use in restaurants, delis, test kitchens and any other establishment that is inspected by the local or state authorities). It can also be purchased as a single or 3-phase option depending on your needs.
IMPAK has supplied GCVDC-24FB machines for the following applications:
- • Sous Vide
- • Pet food packaging
- • Test kitchens
- • Beef jerky packaging
- • Bio test labs ( Non validatable applications)
- • Many more
| GCVDC-24FB | GCVDC-24FB3P | |
| Chamber size | 26.3" x 21.5" | 26.3" x 21.5" |
| Chamber depth | 7.5" | 7.5" |
| Seal bar length | 24" / 610mm (x2) | 24" / 610mm (x2) |
| Vacuum pump capacity | 24m3/h x 2 = 48m3/h | 100m3/h |
| Max Amp | 16.0A | 13.0A |
| Voltage | 220V/1ph/60hz | 220V/3ph/60hz |
| Machine weight | 540 lbs./ 245 kg | 630 lbs./ 285 kg |
| Machine size - L x W x H | 27.5" x 57.5" x 38.5" | 27.5" x 57.5" x 38.5" |
Interested in Learning More?
A hermetic seal on flexible packaging can be achieved with any of our sealing machines, this quick guide will help you choose the unit that will work best for your production needs.
Not every Industrial Vacuum Sealer applies to every application. There are different models and types of Vacuum Sealers available, and each one of those sealers has different features that can affect the way a production line works.
We design and manufacture custom sealing equipment to meet the unique needs of our customers. In addition to new machinery we even retrofit our customers’ existing equipment, regardless of the brand.
