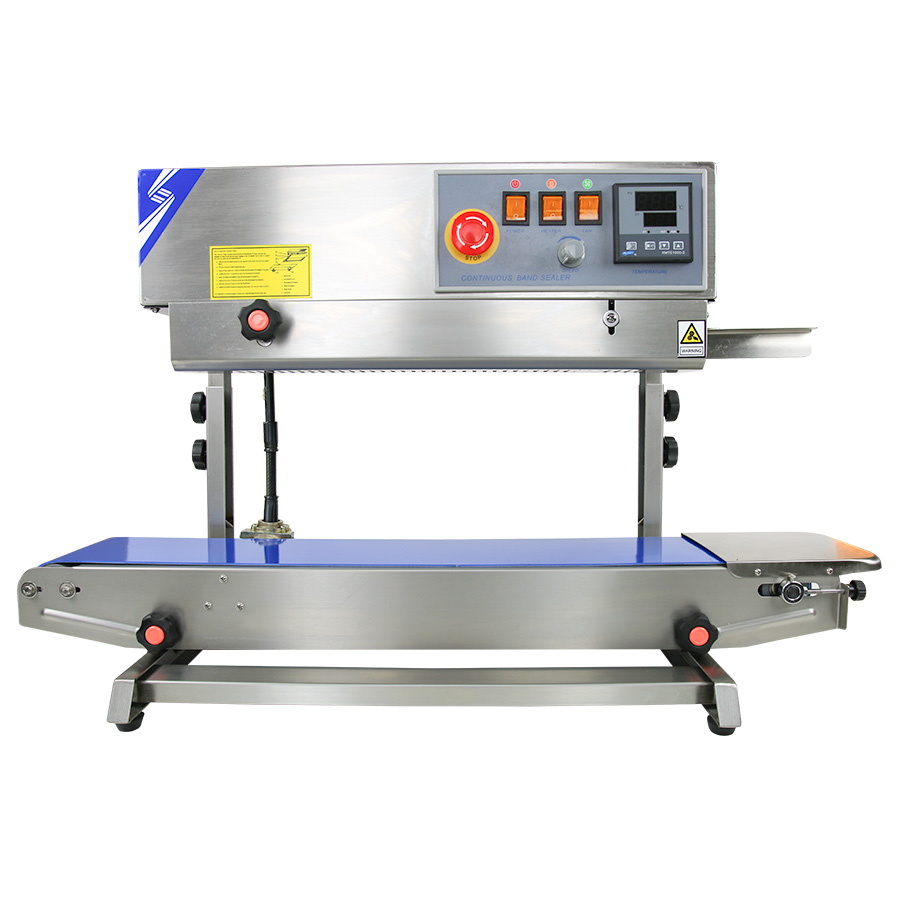

RSV1525 Rapid Sealer

RSV1525 Rapid Sealer

Vertical Rapid Sealer

Starting Price: $1,065.00
Standard Features:

  • - All Metal Construction & Powder Coated Finishes
  • - Solid State Temperature Control
  • - Standard Embossing Attachment with limited typeset standard
    (extra characters are available from our Spare Parts Department)
  • - Fully Adjustable to Conveyor: Vertical - 1.25" / Horizontal - 2.625"
  • - Seal Pouches up to 12" tall
  • - Also available in Stainless Steel

Powder-Coated Models:

RSV1525 Rapid Sealer with Analog Temperature Controller
Analog Temperature Controller
Part Number: RSV1525

Powder Coated Vertical Rapid Sealer™ with Analog Temperature Controller
Price: $1,065.00
Quantity
Add On Options:


RSV1525 Rapid Sealer with 220 volt Analog Controller
220 Volt Analog Controller
Part Number: RSV1525-220V

Powder Coated Vertical Rapid Sealer™ with Analog Temperature Controller
Price: $1,190.00
Quantity
Add On Options:


Stainless Steel Models:

Stainless Steel Vertical Rapid Sealer with Analog Temperature Controller
Analog Temperature Controller
Part Number: RSV1525SS
Stainless Steel Vertical Rapid Sealer™ with Analog Temperature Controller
Price: $1,265.00
Quantity
Add On Options:


Stainless Steel Vertical Rapid Sealer with 220 volt Temperature Controller
220 Volt Analog Controller
Part Number: RSV1525SS-220V
Stainless Steel Rapid Sealer™ with Analog Temperature Controller
Price: $1,265.00
Quantity
Add On Options:


Need your packaging to be gas flushed?

Introducing the first Rapid Sealer™ with Gas Flush

We Modify Band Sealers to Fit Your Specific Need

The RSV1525 Vertical Tabletop Band Sealer can quickly and efficiently seal small bags made from a wide variety of materials. The ability to control temperature and conveyer speed makes this band sealer ideal for both small and large projects. At 32" long, this sealer can easily be set up anywhere and storage is never a problem, even in small areas.

The embossing attachment is perfect for adding personal touches to your products, whether it be an expiration date, Lot number, company name, or part number.

Our RSV1525 Band Sealers can be configured for either vertical or horizontal operation. Each comes with a retro-style control gauge for setting temperature of the sealer element.

Sealing Speed 0 - 12m/min.; 0 - 320"/min.
Sealing Width 6 - 12mm; min: 1/8" - max: 5/8"
Temperature Range 0 - 300 Co; 32 - 572 Fo
Voltage / Hz. 110V / 60Hz
Power 500W / 4.55 Amps
Max. Load / Pkg. on Conveyor 2.5 kg / 5.5 lbs
Machine size 32" x 15.75" x 11"
800 x 400 x 320 (mm)
Weight 58 lbs (26.36kg)

Click Here for PRODUCT SPECIFICATION SHEET

Part Number: 77XSPPRKT1525
Price: $159.90 (when purchased separately)
Included Items:

  • - 2 urethane Drive Belts
  • - 10 *PTFE Flouropolymer Bands
  • - 1 Printed Circuit Board
Quantity:

View Complete List of RSV1525 Spare Parts
