Rapid Sealer Spare Parts
Rapid Sealer Spare Parts | Part # | Price | Quantity | |
![]() |
Spare Parts | 77XSPPTKT | $159.90 | |
![]() |
Axial Fan 2010 | 77XAXLFN2010 | $97.50 | |
![]() |
Back roller of conveyor belt | 77XBKRCVRBLT | $32.20 | |
![]() |
Bottom LR Gearbox [1] | 77XLFRTGRBX | $150.85 | |
![]() |
Bottom RL Gearbox [2] | 77XRTLFGRBX | $150.85 | |
![]() |
Bushing Kit [3] | 77XBRSHKT | $9.75 | |
![]() |
Circuit Plate Speed | 77XCRTPLTSPD | $56.90 | |
![]() |
Conveyor Belt | 77XCNVRBLT | $79.45 | |
![]() |
Cooling Block Kit (2 ea.) | 77XCLNBLK2P | $59.75 | |
![]() |

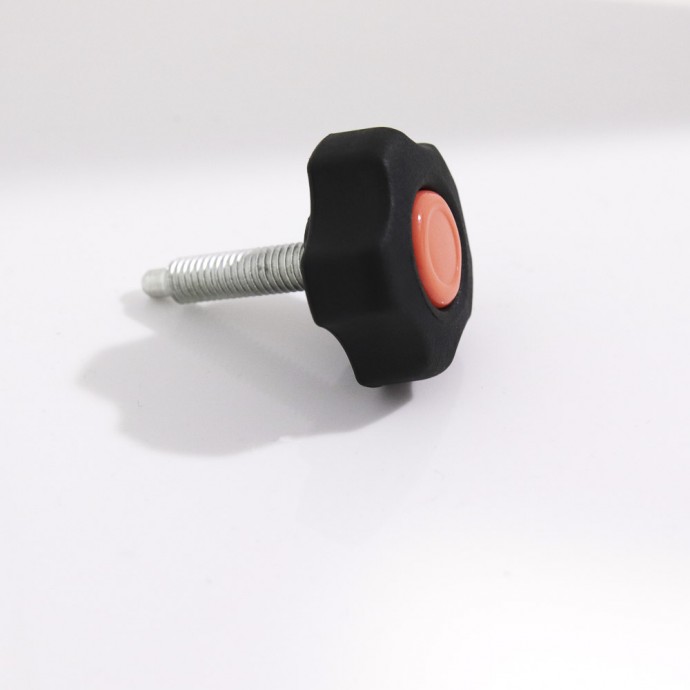

Corrugated Knob | 77XCRGDKNB | $5.40 | |
![]() |
Digital Temperature Control | 77XDGTTMPCNTL | $254.20 | |
![]() |
Drive Wheel [4] | 77XDRVNWHL | $22.75 | |
![]() |
Drive Wheel Seats [5] | 77XDRVNWHST | $18.45 | |
![]() |
Embossing Roller Seat | 77XMBSNRLST | $11.50 | |
![]() |
Embossing Wheel | 77XMBSNWHL | $51.90 | |
![]() |
Feeding Guide | 77XFDNGDE | $9.95 | |
![]() |
Front Roller of Conveyor Belt | 77XFTRCVRBLT | $37.65 | |
![]() |
Heating Block Kit (2 ea.) | 77XHTNBLK2P | $64.20 | |
![]() |
Heating Element | 77XHTNLMNT | $17.85 | |
![]() |
Heating Element Kit (2 ea.) | 77XHTNLMNT2P | $31.75 | |
![]() |
Horizontal Driveshaft | 77XHRZDRVSH | $12.75 | |
![]() |
Knob Kit | 77XKNBKT | $10.30 | |
![]() |
Knurled Compression Wheel | 77XKRLCMPWH | $54.65 | |
![]() |

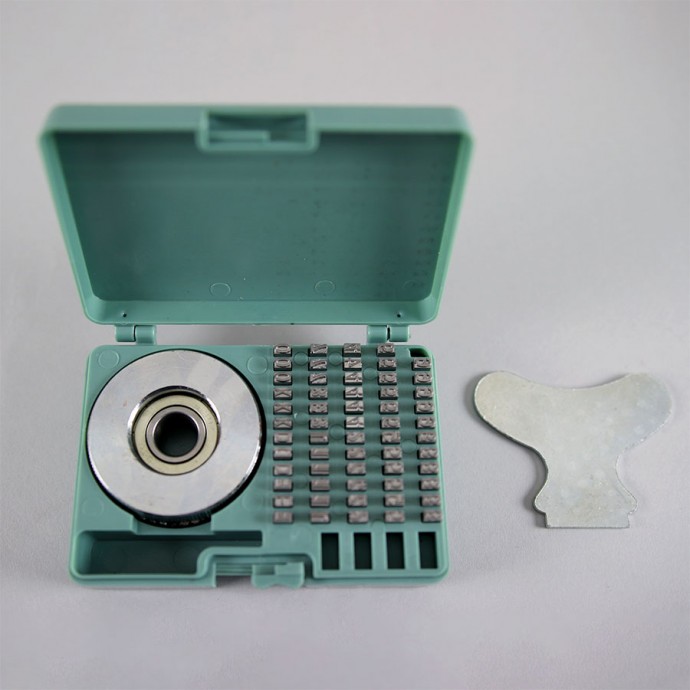

Letter Kit | 77XLTTRKT | $41.20 | |
![]() |
Lower Cooling Block | 77XLWCLNBLK | $34.85 | |
![]() |
Lower Heating Block | 77XLWHTNBLK | $37.15 | |
![]() |
Lower Pinch Roller | 77XLWPNHRLR | $17.35 | |
![]() |
Motor | 77XMTR | $194.40 | |
![]() |
Number Kit | 77XNMBRKT | $47.55 | |
![]() |
Power Line | 77XPWRLN | $12.15 | |
![]() |
Rocker Switch | 77XWSWTH | $10.50 | |
![]() |
Safety Cover | 77XSFTCVR | $27.50 | |
![]() |
Side LR Gearbox | 77XSLTRTGRBX | $165.40 | |
![]() |
Side RL Gearbox | 77XSRTLFGRBX | $275.00 | |
![]() |
Silicone Wheel | 77XSLCNWHL | $37.55 | |
![]() |

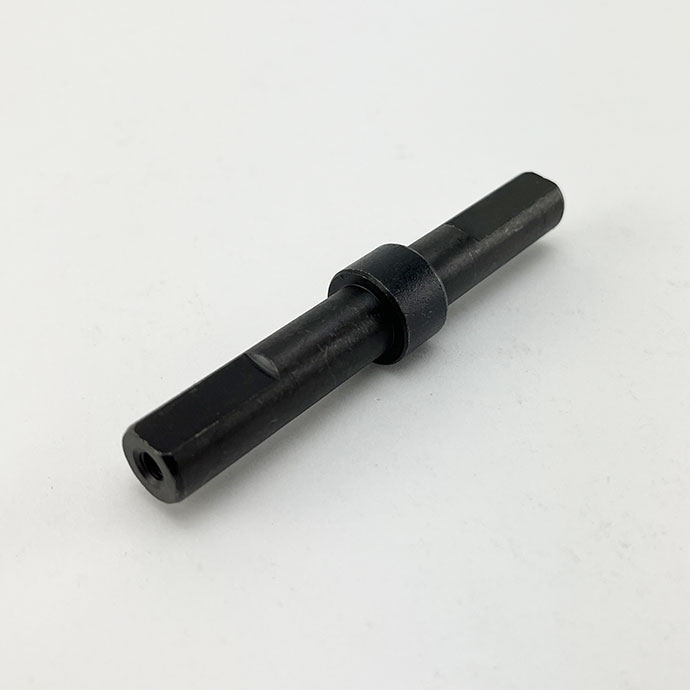

Silicone Wheel Shaft | 77XSLCNWHLSFT | $11.50 | |
![]() |
Small Pulley Bearing | 77XSMLPLBRG | $7.95 | |
![]() |
Speed Regulating PCB | 77XSPDRGTPCB | $56.60 | |
![]() |
Stand with Casters | 77XSTNCSTR | $167.00 | |
![]() |
*PTFE Flouropolymer Bands [6] 15 inch 10PK |
77XTFNBD150010P | $79.50 | |
![]() |

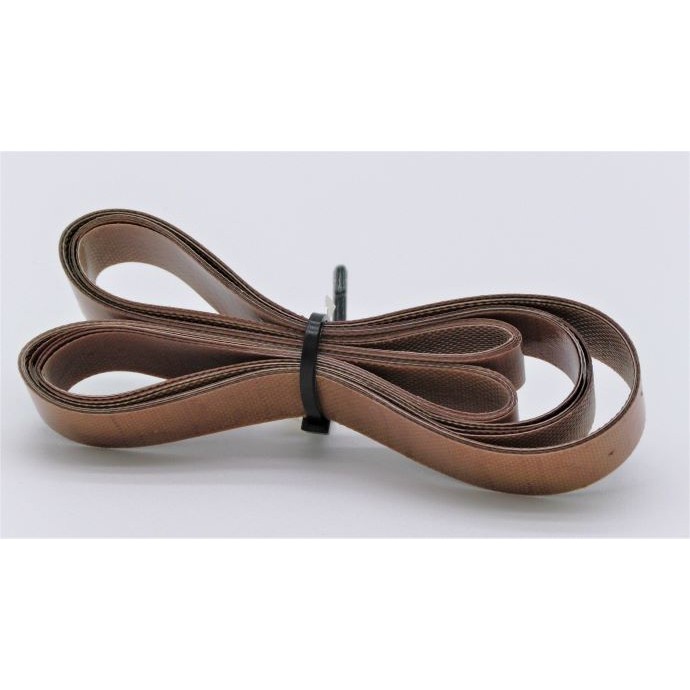

*PTFE Flouropolymer Bands [6] 15.25 inch 10PK |
77XTFNBD152510P | $85.15 | |
![]() |
Temperature Relay Flat Style | 77XTMPRLFTSTL | $45.80 | |
![]() |
Tool Kit | 77XTLKT | $15.10 | |
![]() |
Upper Cooling Block | 77XUPCLNBLK | $34.85 | |
![]() |
Upper Heating Block | 77XUPHTNBLK | $37.15 | |
![]() |
Upper Pinch Roller | 77XUPPNHRLR | $17.35 | |
![]() |
Urethane Belts [6] 8.5" diameter - 10PK |
77XURTBLT10P | $137.40 | |
![]() |
Urethane Belts [6] 8.5" diameter - 2 PK |
77XURTBLT2P | $33.95 | |
![]() |
Urethane Belt [6] 8.5" diameter |
77XURTNBLT | $16.95 | |
![]() |
Vertical Driveshaft | 77XVRTDRVSH | $60.15 | |
![]() |
Vertical Kit | 77XVRTCLKT | $148.15 |
*Learn More
[1] LR Refers to "Left to Right" - The way the bag is fed into the sealer.
[2] RL Refers to "Right to Left" - The way the bag is fed into the sealer.
[3] Refered to as "Brush Kit" on the manual
[4] Referred to as "Driven Wheel" on the manual
[5] Referred to as "Driven Wheel Seats" on the manual
[6] Sizing refers to Inside Dimensions
