PrintRapid™ Band Sealers with Integrated Inkjet Printer
PrintRapid™
PrintRapid™ Pro
PrintRapid™ Max
Standard Features:
- - Each comes with 1 BLACK printer cartridge
- - All Metal Construction with a Stainless Steel Finish
- - Digital Temperature Controller
- - Integrated Inkjet Cartridge Printer Head and Controller
- - Seals a minimum of 45 (Test production: 3.4" x 4" pouches) bags per minute
- - Warranty: One year parts and labor, not including consumables
- - Pro model available in Horizontal and Vertical configurations - with right or left product feed
- - Spare Parts Kits Available
- - Various Ink Cartridge Colors Include: Black, Red, White, Blue, and Yellow
Horizontal Configuration
** Comes with 1 BLACK printer cartridge **
Digital Controller
Right to Left Feed
Integrated Inkjet Printer and Control System
Product Number: PHR1525RLB-INJ
** Comes with 1 BLACK printer cartridge **
Digital Controller
Right to Left Feed
Integrated Inkjet Printer and Control System

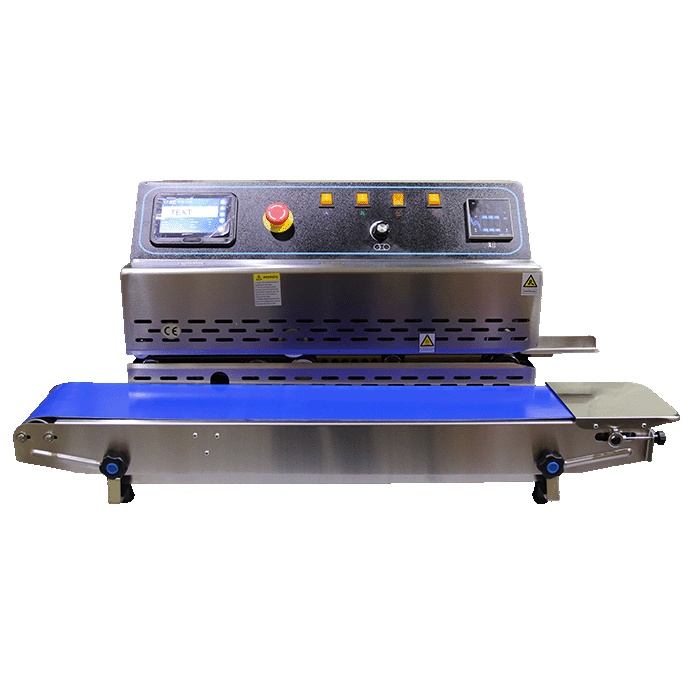

Product Number: PHR1525RLH
** Comes with 1 BLACK printer cartridge **
Digital Controller
Left to Right Feed
Integrated Inkjet Printer and Control System

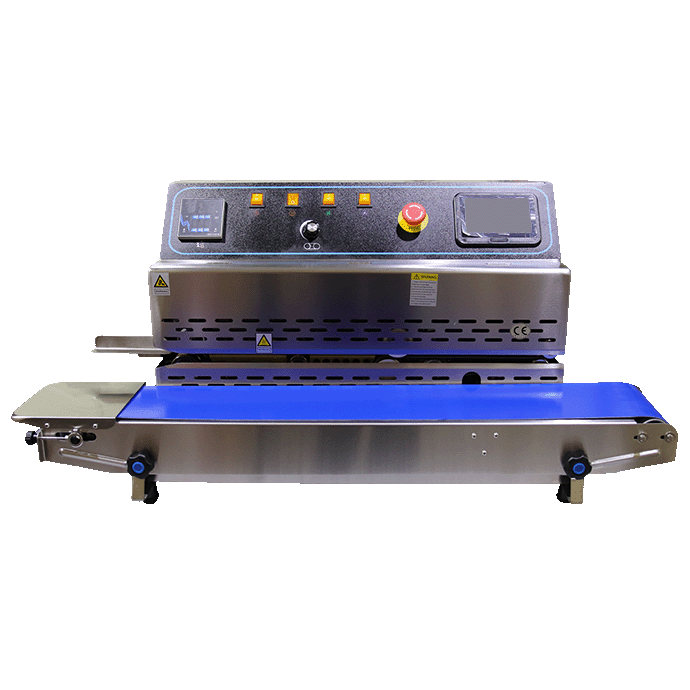

Product Number: PHR1525LRH
Vertical Configuration
** Comes with 1 BLACK printer cartridge **
Digital Controller
Right to Left Feed
Integrated Inkjet Printer and Control System

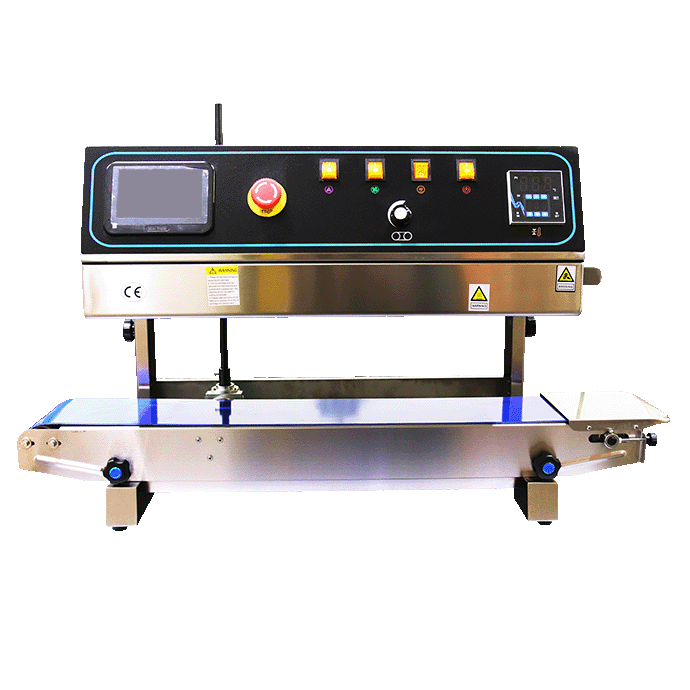

Product Number: PVR1525RLH
** Comes with 1 BLACK printer cartridge **
Digital Controller
Left to Right Feed
Integrated Inkjet Printer and Control System

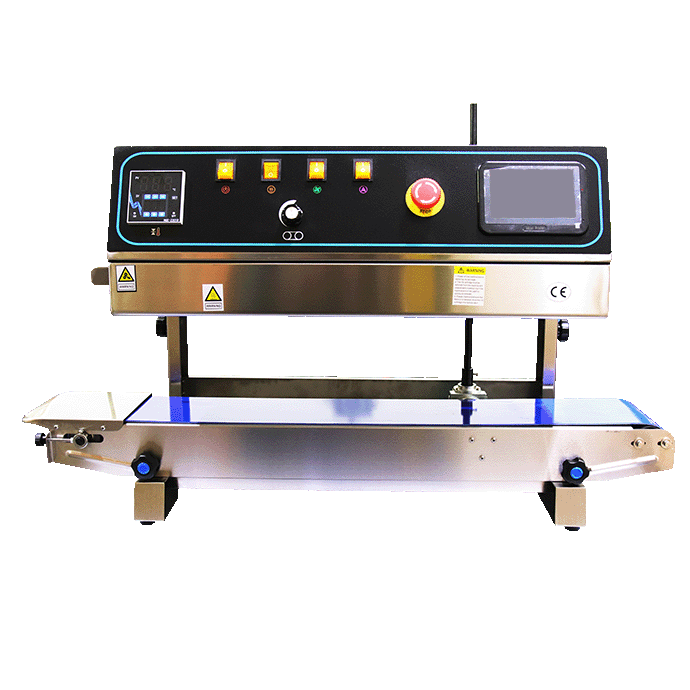

Product Number: PVR1525LRH
** Comes with 1 BLACK printer cartridge **
Digital Controller
Right to Left Feed
Product Number: PVR2225RLH

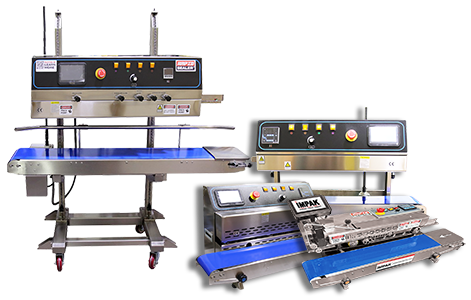

The PrintRapid™ Series of Continuous Stainless Steel Band Sealers with Built-in Inkjet™ Printers are a great all in one platform to launch or augment a packaging line. The PrintRapid™ and PrintRapid™ Pro are both tabletop ready units that can have vertical or horizontal orientation. The PHR1525RLB-INJ is more than capable of sealing a minimum of 45 bags (Example: 3.4" x 4") per minute. Each PrintRapid™ comes with an cartidge based Inkjet printer and controller built into the machine that allows the customer to print up to 6 print lines. Perfect for lot codes, expiration dates and company name, the best part of this feature is that the machine will print on the bag at the same time it seals the bag. Capable of heat sealing at up to 300 C°, this machine is capable of sealing most materials used in flexible packaging. For larger projects we also offer the PrintRapid™ Max - a vertical large body band sealer with the same Inkjet integration that makes it's smaller siblings so popular.
For a limited time get a FREE Keep Fresh 108 home vacuum sealer with purchase of a PrintRapid™ Pro or Max. One of the main ways to run into production issues is to leave the printer cartridge out to dry out. While each comes with a clip to store safely, we have had customers who wanted a little extra visible assurance. To that end we have paired our KF108 home vacuum unit to let you seal the printRapid cartridge between prduction runs. simply select the option when adding a printRapid to the cart.
PrintRapid™ Specifications - PHR1525RLB-INJ
| Sealing Speed | 312 in/min |
| Sealing Width | Min seal width 1/8” – max seal width 5/8” |
| Printing Capabilities | Max 6 Print Lines |
| Ink Type | Inkjet Cartridge |
| Temperature Range | 32 to 575 F° | 0 to 300 C° |
| Voltage | 110V/60Hz |
| Power: | 950 Watts/7 Amps |
| Max. Load on Conveyor Table: | 5 kg. |
| Machine Size: | 37" x 19" x 15" (950mm X 480mm X 380mm) |
| Weight | 70 lbs. / 45 kg. (With Packaging Included) |
PrintRapid™ Pro Specifications - PHR1525 / PVR1525
| Horizontal | Vertical | |
| Sealing Speed | 0 ~ 16m/min | 0 ~ 16m/min |
| Sealing Width | 10mm | 10mm |
| Temperature Range | 32 to 575 F° | 0 to 300 C° | 32 to 575 F° | 0 to 300 C° |
| Voltage | 110V/60Hz | 110V/60Hz |
| Motor Power (W) | 50/100 | 50/100 |
| Sealing Power (W) | 300*2 | 300*2 |
| Max. Load on Conveyor Table: | 10 kg. | 10 kg. |
| Machine Size: | 38" x 15" x 18" (954mm X 390mm X 465mm) | 38" x 16" x 22" (954mm X 400mm X 548mm) |
| Weight | 66 lbs. / 30 kg. | 88 lbs. / 40 kg. |
PrintRapid™ MAX Specifications - PVR2225RLH
| Sealing Speed | 0 ~ 10m/min |
| Sealing Width | 10mm |
| Printing Capabilities | Max 6 Print Lines |
| Ink Type | Thermal Inkjet Cartridge |
| Temperature Range | 32 to 575 F° | 0 to 300 C° |
| Voltage | 110V/60Hz |
| Bag Height: | 100mm - 700mm (3.9" - 27.5") |
| Max. Load on Conveyor Table: | 15 kg. |
| Machine Size: | 56" x 27" x 62" (1430mm X 680mm X 1570mm) |
| Weight | 309 lbs. / 140 kg. (With Packaging Included) |
Inkjet Printer Specs:
| Print Type: | Thermal Inkjet Printer |
| Screen: | 5" Touch Screen (800x480) |
| Print Font Height: | 1.5 - 12.7mm |
| Max Print Line: | 6 |
| Ink Color Options: | Black, Red, and White Available | Special Order: Blue, Green, Yellow, and Transparent |
| Cartridge Print Volume: | 70K ~ 80K Characters (Font-Size Dependent) |
| Print Options: | English, Chinese, Symbols, Graphics, QR Codes, Bar Codes, Dates, or Counts |
PrintRapid™ (PHR1525RLB-INJ) Spare Parts Kit - SPK-INK1525
Kit inlcudes:
- 8 of the 15.25" PTFE Fluoropolymer Bands
- 2 Drive Belts
- 1 Printed Speed Control Circuit Board
- 2 Replacement Fuses
- 1 Flathead Screwdriver
PrintRapid™ Classic (RSH1525RLB-INJ) Spare Parts Kit - SPK-1525INJCLASSIC
Kit inlcudes:
- 8 of the 14.75" PTFE Fluoropolymer Bands
- 2 Drive Belts
- 1 Printed Speed Control Circuit Board
- 2 Replacement Fuses
- 1 Flathead Screwdriver
PrintRapid™ Pro (PHR1525/PVR1525) Spare Parts Kit - SPK-1525INJ
Kit inlcudes:
- 10 of the 15.75" PTFE Fluoropolymer Bands
- 2 Drive Belts
- 1 Printed Speed Control Circuit Board
PrintRapid™ Max (PVR2225RLH) Spare Parts Kit - SPK2225INJ
Kit inlcudes:
- 10 of the 15.75" PTFE Fluoropolymer Bands
- 2 Drive Belts
- 1 Printed Speed Control Circuit Board

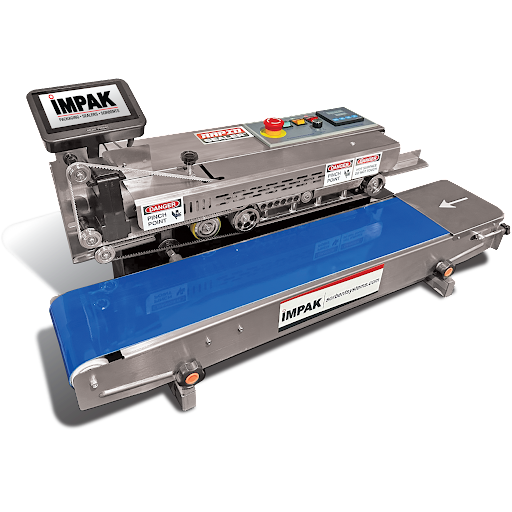

Base PrintRapid™ Inkjet Band Sealer:
PrintRapid™ Max Large Frame Inkjet Band Sealer:
