Push to Seal Impulse Heat Sealers
PTS Series
Starting Price: $349.05 (10" unit)
Standard Features:
- Available in seal lengths of 8", 10" and 12"
- Standard Seal Width: 5mm
- Easy to use controls
- Units ship within 3 business days
- 6 month warranty included
SPAREPARTS
for
PTS
Sealers
The PTS is a fast & easy impulse sealing machine perfect for labs, kitchens, shops, shipping areas, and more; it's a sealer and resealer for plastic and Mylar foil pouches/bags that's great for heat sealing foods, liquids, powders, gels, or practically anything else.
What customers say about the new PTS-250:
"The most valued new space saving part of my kitchen."
- Richard F, chef, Boise, ID
"My current go-to unit in the lab environment."
- Khanh T, Maryland-based testing center
Push to Seal Sealers Available Now ↓
10" Push to Seal Impulse Heat Sealer
Vertical Mount
Configuration
10" Push to Seal - Overview
Push to Seal (PTS-250) - Spare Parts Guide
If you receive a heat sealer with a heating element that lacks rounded ends, it's possible you have received an older version. Please contact us immediately for further assistance.
8" Push to Seal Impulse Heat Sealer
Part Number: PTS-200Optional spare parts kit includes: One (1) Heating Element and One (1) PTE Insulator Tape Strip (installs under heating element)

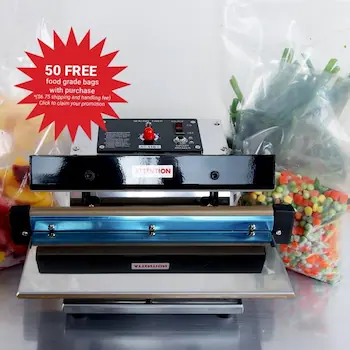

Limited Time Promotion: For a limited time receive 50 of our virtually indestructible and very elastic food grade bags (8.5" x 13.0") FREE (P/N: V4R08513)
12" Push to Seal Impulse Heat Sealer
Part Number: PTS-300Optional spare parts kit includes: One (1) Heating Element and One (1) PTE Insulator Tape Strip (installs under heating element)
Seal Width: 2.4 and 5mm
12" Push to Seal Impulse sealer
Part Number: PTS-300AOptional spare parts kit includes:
(1) Heating Element 2.4mm width
(1) Heating Element 5mm width
(1) Fuse 10A
(1) Teflon cover
Looking for Foot Pedal Sealers or Portable Handheld Sealers?
Push to Seal Impulse Heat Sealers
Our Most Popular IMPAK Hand Press Impulse Heat Sealer; PTS-200 - 8", PTS-250 - 10", PTS-300 - 12", and PTS-300A - 12"
Put this Stainless Steel Heat Sealer to the test.
- • Easy to operate - hand press - no warm-up time
- • Can be operated horizontally on a table or mounted vertically which allows the package to remain upright while being sealed.
- • Suitable for lots of applications including powder and liquid products; great for sealing coffee bags
- • Stainless steel construction
- • Strong 5mm seal width
(PTS-300A capable of producing a 2.4mm and 5mm seal) - • Analog electronic heat timer
- • 8, 10, and 12-inch seal lengths (8-inch sealer can seal materials up to 9 inches wide)
- Vertical Mounting Kits are sold separately
Operation:
- • Set the sealing time according to the thickness of your bag material. (Always start with the minimal setting and slowly increase time as needed to determine accurate time that achieves integral seal for your bag.)
- • Insert material between the seal bars and lightly press the working table so the seal bars meets.
- • Hold the table for 2 to 3 seconds after the red LED goes off.
| Model #: | PTS Series |
| Seal length: | 8", 10" and 12" |
| Seal width: | 5mm |
| Temperature Control | Analog |
| Voltage: | 120V/60Hz |
| Machine Dimensions | 8" Sealer = 13" x 11.5" x 7" 10" Sealer = 13" x 13.5" x 7" 12" Sealer = 13" x 14" x 7" |
| Machine Weight | 8" Sealer = 12 lbs. 10" Sealer = 16.25 lbs. 12" Sealer = 17 lbs |
