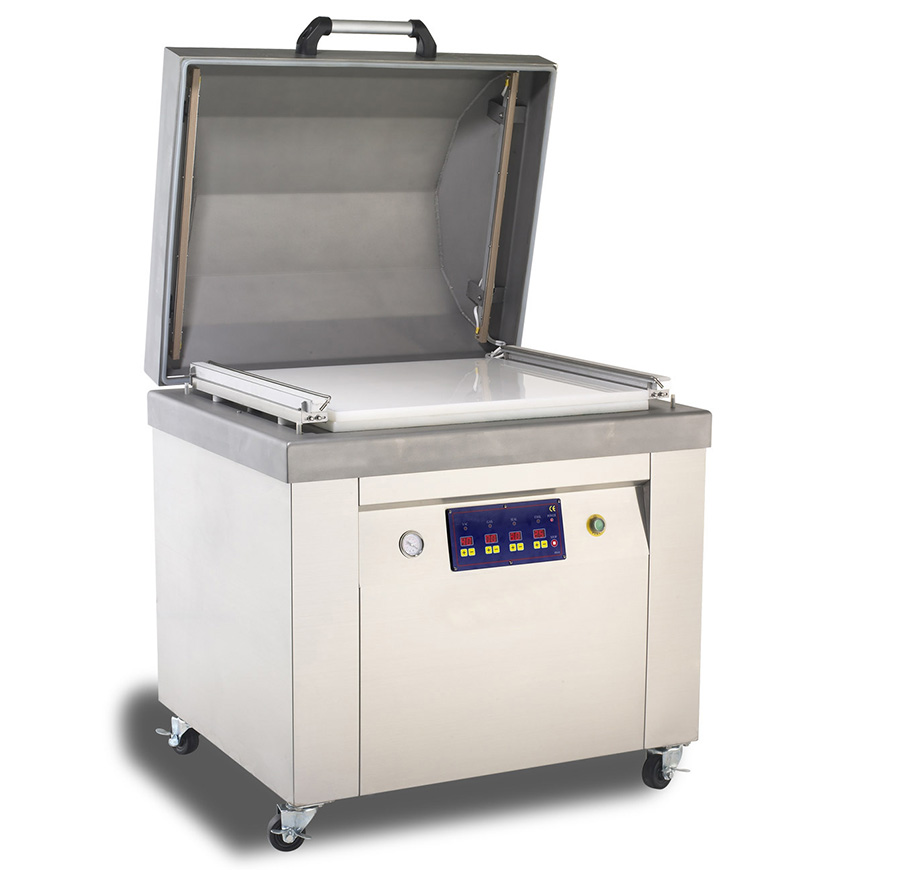

CHSC-680LR - Single Chamber Vacuum Sealer

chsc-680lr single chamber vacuum sealer


Single Chamber Vacuum Sealer

Starting Price: $7,895.00
Standard Features:

  • • PD-01 Basic Digital Control Panel
  • • Stainless Steel Construction
  • • Flat chamber for easy cleaning
  • • Bladder Activated Sealing
  • • Busch Vacuum Pump
  • • 6mm Flat Seal
  • • Water resistant electrical box
  • • Durable, removable aluminum cushion bar
  • • Mobile Casters
  • • Certified & labeled to meet UL, CSA & NSF

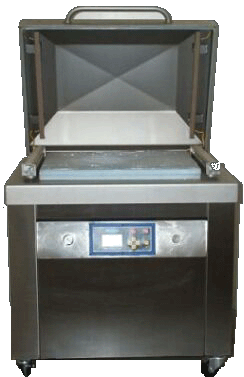

CHSC-680LR Single Chamber Sealer

chsc-680lr single chamber sealer


Prepaid Price: $7,995.00

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. Contact us for expedited orders.

Shipping costs will be calculated and advised via email

Need precise control of time, temperature and pressure?

Introducing the Intelligent Sealing System (iS2)

NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags


IMPAK’s model CHSC-680LR is truly a heavy-duty industrial vacuum chamber sealing machine. With features like all # 304 stainless steel construction, a flat working deck for easy cleaning and a robust Busch RA0040 (2HP) vacuum pump as standard the CHSC-680LR is ready to meet your heavy duty vacuum packaging needs. As with the entire IMPAK line of vacuum chamber sealing machines the CHSC-680LR has been ETL tested, certified and labeled as meeting UL and CSA safety standards as well as NSF sanitary standards. This means the CHSC-680LR is ready to go to work in any inspected facility. Available options include larger vacuum pumps, particulate and moisture trap filters, to protect the vacuum system, per knife bag trim systems and many more. The standard PD-01 basic digital control panel allows the operator to set vacuum time, gas flush time (if your machine is equipped with the optional gas flush system), seal time and cooling time at the touch of a button and with accuracy due to the digital read out. If your applications require more control features including recipe memory the optional PNC-01 microprocessor control panel may be just what you need. The PNC-01 allow the vacuum to be controlled via vacuum pressure or by time and allows multi-stage vacuum / gas flush operations (optional gas flush system required) just to name a few of the capabilities of this control system. For applications that require a temperature controlled seal system and / or a fully validate able control system the CHSC-680LR can be equipped with our Precise Seal PLC/HMI based control system. This system allows for the seal to be controlled via temperature or time as well as allowing for the vacuum to by very precisely controlled via vacuum pressure. Optional calibration ports are also available allowing a 3rd party calibration lab to easily calibrate and certify your machine.

IMPAK has supplied CHSC-680LR machines for the following applications:

  • • Hi volume Sous Vide preparation
  • • Cheese packaging
  • • Vitamin ingredient bulk packaging
  • • Vacuum packaging laser printer cartridges
  • • Many more
  • • Lid height 10.0" or 12.0"
  • • PNC-01 Computerized water resistant control panel
  • • Single Phase motor available (up to 100m3/h,5hp)
  • • Pump Size
  • • Voltage
  • • Gas Flush
  • • Top and Bottom Seal
  • • Soft Air
  • • Mechanical Knife Cut-Off System
For options, please contact

Chamber size 35.5" x 26.0"
Chamber depth 8.0"/200mm
Distance between seal bars 26/665mm
Seal bar length 20.5"
Vacuum pump capacity 40m3/h (2hp)
Power/Amp 1.6kw/7.5A
Voltage 230V/3ph/60Hz
Machine weight 500 lbs. /227 kg
Machine size - L x W x H 35.0" x 26.0" x 39.0"
chamber sealer technical drawing

Swing Lid Double Chamber in Operation

Chamber Sealer Comparison - Vacuum With and Without Gas Flush
