GCV-25V
Castle Vak Vertical Chamber Vacuum Sealer
Starting Price: $6,890.00
Standard Features:
- • 304 Stainless Steel Construction
- • Vertical Seal Chamber (26" x 18" x 31.5")
- • 25.5" x 10mm Flat Seal Bar
- • Adjustable Shelf

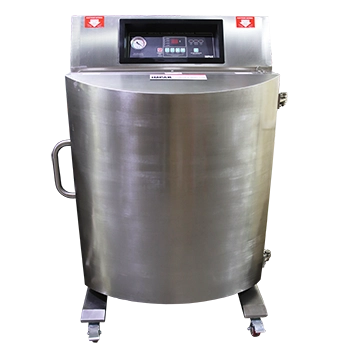

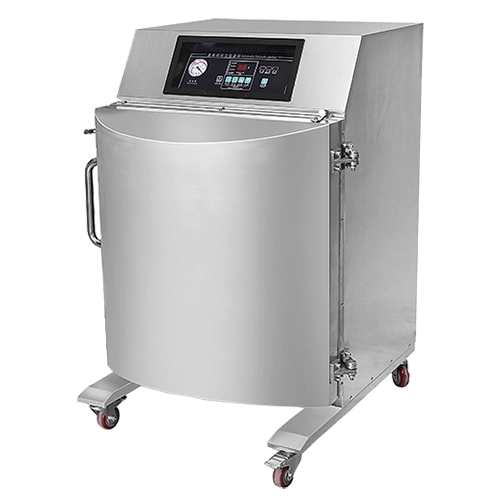

GCV-25V - Castle Vak Vertical Chamber Sealer
GCV-25V
Introducing the Intelligent Sealing System (iS2)
The GCV-25V is the first Vertical Chamber Sealer offered in the Castle Vak line. As with all of our chambersealer machines the GCV-25V can be made to meet UL and CSA safety standards (to meet all the requirements for use in restaurants, delis, test kitchens and any other establishment that is inspected by the local or state authorities). Featuring 304 stainless steel body and a rare vertical chamber, this unit was designed for projects that require the power and precion of a chamber seal, but for a liquid or difficult to manage product you would normally have trouble in a horizontal chamber.
IMPAK has supplied GCV-25V machines for the following applications:
- • Sous Vide
- • Pet food packaging
- • Test kitchens
- • Beef jerky packaging
- • Bio test labs ( Non validatable applications)
- • difficult to seal products like liquids
- • Many more
| Chamber size | 26" x 31.5" (650mm x 80mm) |
| Chamber depth | 18" (450mm) |
| Seal bar length | 25.5" (650mm) |
| Vacuum pump capacity | 20h/m2 x 2 |
| Max Amp | - |
| Voltage | 220V/1ph/60hz |
| Machine weight | 397 lbs./ 180 kg |
| Machine size - L x W x H | 39.2" x 37.8" x 51.2" (970mm x 960mm x 1300mm) |
Interested in Learning More?
A hermetic seal on flexible packaging can be achieved with any of our sealing machines, this quick guide will help you choose the unit that will work best for your production needs.
Not every Industrial Vacuum Sealer applies to every application. There are different models and types of Vacuum Sealers available, and each one of those sealers has different features that can affect the way a production line works.
We design and manufacture custom sealing equipment to meet the unique needs of our customers. In addition to new machinery we even retrofit our customers’ existing equipment, regardless of the brand.
