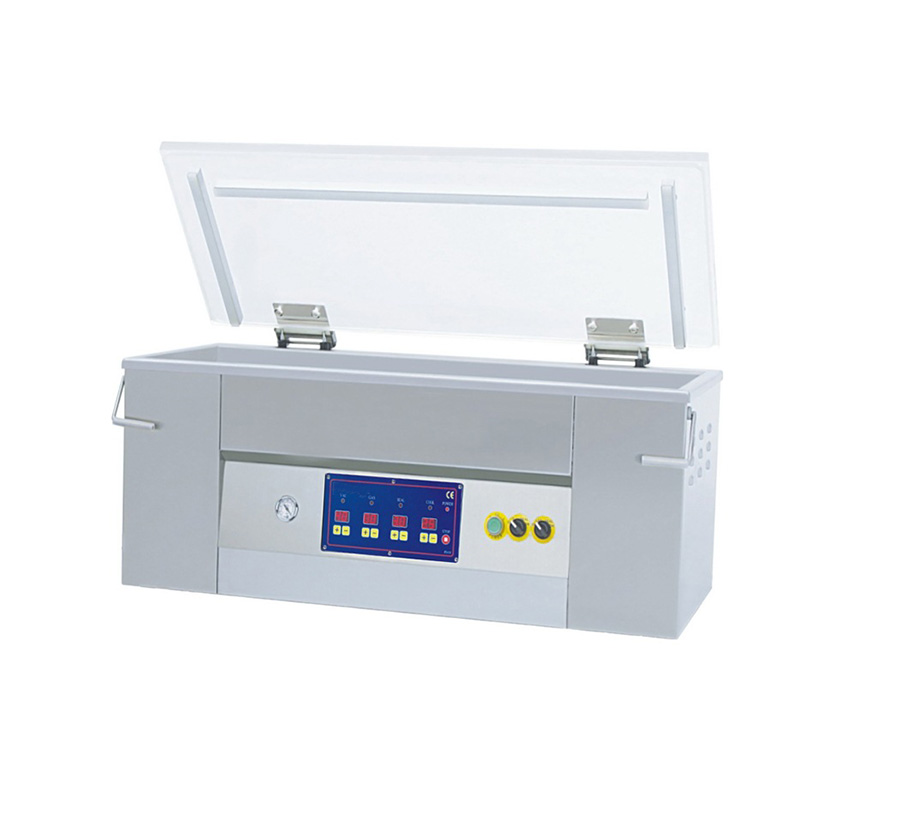

CHTC-350FLR - Tabletop Chamber Vacuum Sealer

chtc-350flr tabletop chamber vacuum sealer

CHTC-350FLR

Tabletop Chamber Vacuum Sealer

Starting Price: $6,075.00
Standard Features:

  • • PD-01 Basic Digital Control Panel
  • • Stainless Steel Construction
  • • Clear See-Through Lid
  • • Bladder Activated Sealing
  • • Busch 08 Vacuum Pump
  • • 4mm Flat Seal or Cut-Off Seal
  • • Certified & labeled to meel UL, CSA & NSF
  • This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air.

CHTC-350FLR Tabletop Chamber Sealer

chtc-350flr tabletop chamber sealer

CHTC-350FLR

Prepaid Price: $6,075.00
Quantity

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. Contact us for expedited orders.

Shipping costs will be calculated and advised via email


Need precise control of time, temperature and pressure?

Introducing the Intelligent Sealing System (iS2)

NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.4375" x 12.875" O.D. Vacuum Bags


3-4 WEEKS LEAD TIME


The model CHTC-350FLR is a vacuum chamber sealing machine that was designed with several special applications in mind including fish products and longer cuts of meat like pork loins. One of the special features you will find in the CHTC-350FLR is three seal bars, one in the front, one on the right side and one on the left side. This arrangement along with a selector switch that allows the operator to choose either the left and right bars, the front bar or all three allows the machine to handle several very long bags or a greater number of shorter bags depending on the product being vacuum sealed. Like all IMPAK chamber vacuum sealers the housing and the chamber cavity are constructed of all # 304 stainless steel and the machine has been ETL tested and certified to meet both UL and CSA safety standards as well as NSF sanitary standards making this model an ideal fit for any facility were such standards are mandatory. As with any model vacuum chamber sealing machine the heart of the CHTC-350FLR is the vacuum pump and IMPAK would never settle for less than a Busch vacuum pump. IMPAK recognizes the importance of an easy to use and accurate control system and meets those requirements with the standard basic digital control panel (PD-01). For those users that require more than basic controls there is the option of the powerful microprocessor based PNC-01 control panel that allows for multi-stage gas flush (if thee machine has the optional gas flush system) soft air venting as well as a 14 recipe memory. Other options like a gas flush system and air assist seal system allow the CHTC-350FLR to handle a wide variety of food and non-food applications.

IMPAK has supplied CHTC-350FLR machines for the following applications:

  • • Sous Vide
  • • Pet food packaging
  • • Test kitchens
  • • Beef jerky packaging
  • • Bio test labs ( Non validatable applications)
  • • Many more
OPTIONS:
  • • Pump Size
  • • Voltage
  • • Gas Flush
  • • Stainless Steel Cart
  • • Soft Air
  • • Air Regulator
  • • Custom Chamber Sizes Available
  • • PNC-01 Computerized water-resistant control panel (IP-56, 12 programs with oil indicator)
  • • 4mm seal wire
For options, please contact sales@sorbentsystems.com

Chamber size 16.6" x 41.4"
Chamber depth 4.7/120mm
Seal bar length 32.8x1/835mm
Vacuum pump capacity 21m3/h (1-1/4 hp)
Voltage 110V/1PH/60HZ/15AMP
Machine weight 253 lbs. / 115 kg
Machine size - L x W x H 42" x 19" x 17" (1060 x 484 x 430 mm)
chamber sealer technical drawing
