Need Samples?

Validatable Sealers

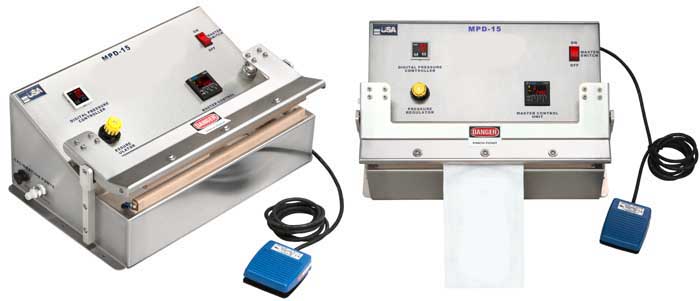

Introducing the MPDSS15, MPDSS20, MPDSS25 Sealers

The MPDSS thermal impulse sealer is ideal for all tabletop medical pouch-sealing applications where budget or space is a paramount concern.

100% US Made

Each Medical Pouch Sealer unit is pneumatically operated and is available in 15, 20 or 25-inch seal length. A digital temperature controller allows you to program the temperature setting required to provide you with an airtight/watertight seal and the release temperature for your cool cycle. A variable timer ensures precise control over the amount of time heat is applied to your package.

With an outstanding level of process controls you can have confidence in sealing a wide range of materials including most thermoplastics and laminated foils. Each pouch sealer is validatable and FDA/NIST traceable. Construction is very heavy duty providing the user years of trouble free operation.

Standard safety features guarantee the utmost protection for your operator. The Stainless Steel finish ensures clean room compatibility and options such as the selection of band elements and water-cooling bar are available.

All medical pouch sealing units are complete with a one-year warranty, detailed operating instructions and spare parts kit.


validatable sealer

MPDSS15 Validatable Sealer


Features include:
  • Validation ports for seal pressure, seal temperature and seal time
  • K-Type thermocouple
  • Pneumatically actuated sealing jaw
  • 15" seal length
  • 0.25" wide nichrome heating element
  • Jaw clearance for side to side material feed
  • Digital pressure gauge, pressure regulator and Temperature Impulse Controller (TIC)
  • Foot pedal operated
  • Airtight and watertight seals
  • Bottom flange allows for horizontal or vertical mounting of machine
  • 120V/60Hz operation

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. If you would like to pay an additional $325.00 we can expedite the manufacture of the MPDSS15 Validatable Sealer and have a machine ready to you in 5-6 days of receipt of order.

DIMENSIONS (L x W x H): 18.5" x 12" x 8.5"
SHIPPING WEIGHT: 40 lbs.

This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air

LIST PRICE:
$4,910.00

PREPAID PRICE:
$4,695.90

OPTIONS:

Expedited (5 Work Day Lead Time): $325.00

Spare Parts Kit - Single Element: $184.90

220V Power Operation: $225.00

NIST Certificate of Calibration performed by third party lab: $475.00


MPDSS20 Validatable Sealer


Features include:
  • Validation ports for seal pressure, seal temperature and seal time
  • K-Type thermocouple
  • Pneumatically actuated sealing jaw
  • 20" seal length
  • 0.25" wide nichrome heating element
  • Jaw clearance for side to side material feed
  • Digital pressure gauge, pressure regulator and Temperature Impulse Controller (TIC)
  • Foot pedal operated
  • Airtight and watertight seals
  • Bottom flange allows for horizontal or vertical mounting of machine
  • 120V/60Hz operation

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. If you would like to pay an additional $325.00 we can expedite the manufacture of the MPDSS20 Validatable Sealer and have a machine ready to you in 5-6 days of receipt of order.

DIMENSIONS (L x W x H): 24.5" x 12" x 8.5"
SHIPPING WEIGHT: 42 lbs.

This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air

LIST PRICE:
$5,725.60

PREPAID PRICE:
$5,475.90

OPTIONS:

Expedited (5 Work Day Lead Time): $325.00

Spare Parts Kit - Single Element: $255.50

220V Power Operation: $225.00

NIST Certificate of Calibration performed by third party lab: $475.00


MPDSS25 Validatable Sealer


Features include:
  • Validation ports for seal pressure, seal temperature and seal time
  • K-Type thermocouple
  • Pneumatically actuated sealing jaw
  • 25" seal length
  • 0.25" wide nichrome heating element
  • Jaw clearance for side to side material feed
  • Digital pressure gauge, pressure regulator and Temperature Impulse Controller (TIC)
  • Foot pedal operated
  • Airtight and watertight seals
  • Bottom flange allows for horizontal or vertical mounting of machine
  • 120V/60Hz operation

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. If you would like to pay an additional $325.00 we can expedite the manufacture of the MPDSS25 Validatable Sealer and have a machine ready to you in 5-6 days of receipt of order.

DIMENSIONS (L x W x H): 29.5" x 12" x 8.5"
SHIPPING WEIGHT: 50 lbs.

This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air

LIST PRICE:
$6,242.23

PREPAID PRICE:
$5,970.00

OPTIONS:

Expedited (5 Work Day Lead Time): $325.00

Spare Parts Kit-Single Element: $286.48

220V Power Operation: $225.00

NIST Certificate of Calibration performed by third party lab: $475.00


MPDSS 15, 20, & 25 SPARE PARTS KITS:

Replacement Parts For Consumables

Part Number: MPXSPPT15
Single Element ¼"
Includes:
1 - 0.25" wide, 15" Long  Heating Element
2 - 0.5" wide, 15.25" Long Orange silicon rubber strips with adhesive backing
2 - 6 mil Thick, 2" wide, 15.25" Long Teflon covers with adhesive strips
3 - 10 mil Thick, 0.5" wide, 15.25" long Teflon strips with adhesive backing
$184.90
Part Number: MPXSPPT20
Single Element ¼"
Includes:
1 - 0.25" wide x 20" Nichrome Heating Elements
2 - 0.5" wide, 20.25" Orange silicon rubber strips with adhesive backing
2 - 6 mil Thick, 2" wide, 20.25" Long
3 - 10 Mil thick, 0.5" wide, 20.25" long
$255.50
Part Number: MPXSPPT25
Single Element ¼"
Includes:
1 - 0.25" wide x 25" Nichrome Heating Elements
2 - 0.5" wide, 25.25" Orange silicone rubber strips with adhesive backing
2 - 6 mil Thick, 2" wide, 25.25" Long Teflon covers with adhesive strips
2 - 10 Mil thick, 0.5" wide, 25.25" long Teflon strips with adhesive backing
$286.48

MPDSS 15, 20, 25 Spare Parts

Part Number Description Price Order
TST621 6 mil thick x 2" wide PTFE Covers with adhesive strip $18.70/yard
TST10121 10 mil thick x ½" wide Adhesive PTFE tape $16.98/yard
TSS141 ¼" wide Silicone Sponge $15.80/yard
MPH1415 Heating Element ¼" x 15" for MPPC/MPDSS15 $70.25/each
MPH1420 Heating Element ¼" x 20" for MPPC/MPDSS20 $70.25/each
MPH1425 Heating Element ¼" x 25" for MPPC/MPDSS25 $70.25/each



Looking for an all electric vacuum sealer for clean room use?
Check out our Electric Impulse Vacuum Sealer
