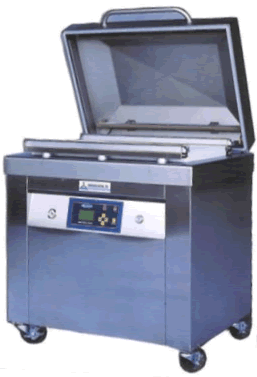

SC-800SFB SINGLE CHAMBER
VACUUM PACKAGING MACHINE
FEATURES:
  • Totally built in stainless steel construction
  • Flat chamber for easy cleaning
  • Bladder activated sealing
  • 10 program LED control system
  • Water proof (IP65) LCD control panel
  • Water-resistant (IP65) electrical box
  • Durable aluminum sealing bar
  • BUSCH vacuum pump
  • Soft air


    • TECHNICAL DATA SHEET
    Sealing length
    31.5" x 2 (800mm)
    Chamber height
    8" (203mm)
    Chamber size
    33.8" (860mm)(L) x 25.2" ( 640mm)(W)
    Sealing bar distance
    18.1" (460mm)
    Vacuum pump capacity
    63m3 / h
    Cycle time
    20~35 sec
    Machine size
    35.43" (900mm)(L) x 26.77"(790mm)(W) x 39.37"(1030mm)(H)
    Voltage
    240v / 480v (Other voltages are available on request)
    Power
    3.0kw
    Weight
    500 lbs (220 Kgs)


    PRICING
    SC-800SFB
    $8,444.00
    OPTIONS
    Gas Flushing
    $569.00
    High Pressure Seal
    $144.00
    Double Sealing Bar
    $844.00
    Double Seal Wire
    TBD

    USE OUR SECURE ORDER FORM TO ORDER


    PLEASE USE OUR SECURE ORDER FORM TO ORDER THIS ITEM.
