heat sealers

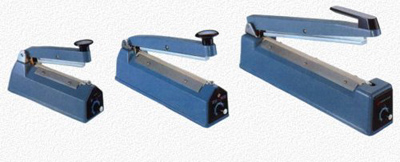

Shown above are the 4" 8" and 12" models
Not shown: 16" and 20" units - see below

Specifications

	IPK-105H	IPK-205H	IPK-305H
Impulse Power	450 W	700 W	1300 W
Max Seal Length	4" - 100 mm	8" - 200 mm	12" - 300 mm
Seal Width	5 mm	5 mm	5 mm
Heat Time	0.2-1.3 (sec)	0.2-1.3 (sec)	0.2-1.3 (sec)
Weight	7 LBS	9 LBS	13 LBS

	IPK-405H	IPK-505H
Impulse Power	1100 W	1600 W
Max Seal Length	16" - 400 mm	20" - 500 mm
Seal Width	5 mm	5 mm
Heat Time	0.2-1.3 (sec)	0.2-1.3 (sec)
Weight	15 LBS	21 LBS

CONTINUOUS BAND SEALER

The DBF-580 sealer will automatically seal a wide variety of bags quickly and accurately. The adjustable heat control plus the cooling station combines to make the DBF-580 work on most types of bags. They are used for sealing bags with liquids or for bags with products that are hard to keep in the bag. The DBF-580 comes standard with the ability to place a code or date in the seal so that production lots can be identified.

F.O.B. Point - Pasadena, CA

AUTOMATIC SEALER

The IPK-305A1 Automatic Impulse Sealer is designed for the continuous sealing of thermoplastic films such as polyethylene and polypropylene. Controlled by a plug-in transistorized circuit board, electronic timers and the uniform pressure provided by an electromagnet. This model eliminates operator error in the sealing operation. Once the correct control settings have been programmed, consistent seals are maintained automatically, making the last seal as perfect as the first. The automatic sealer is ideal for sealing operations in packaging candies, food, stationary, drugs, tools, replacement parts and a variety of other products. Includes an electric foot pedal for manual operation.

Max seal length	14 inches
Max seal thickness	8 mm
Seal Width	5 mm
Watts	900 W
Weight	45 lbs
