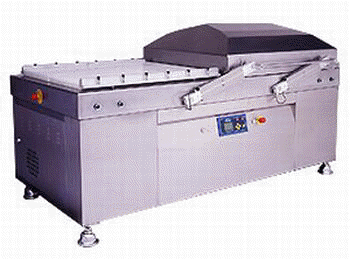

DC-900-FB DOUBLE CHAMBER
VACUUM PACKAGING MACHINE
FEATURES:
  • Totally built in stainless steel construction
  • Flat chamber for easy cleaning
  • Bladder activated sealing
  • 10 program LED control system
  • Water proof (IP65) LCD control panel
  • Water-resistant (IP65) electrical box
  • Durable aluminum sealing bar
  • BUSCH vacuum pump
  • Automatic lid transfer system
  • Soft air


    • TECHNICAL DATA SHEET
    Sealing length
    39" x 4 (1000mm)
    Chamber height
    13.7" (350mm)
    Chamber size
    41.7" (1060mm) x 46 " ( 1170mm)(L x W)
    Sealing bar distance
    35.8" (910mm)
    Vacuum pump capacity
    250m3 / h
    Cycle time
    15~35 sec
    Machine size
    35.36" (1330mm) x 94.48"(2400mm) x 49.2"(1250mm)(L x W x H)
    Voltage
    240v / 480v 3PH (Other voltages are available on request)
    Power
    10.0kw
    Weight
    1980 lbs (900 Kgs)
    Consumption air
    3.5 kg / cm2


    PRICING
    DC-900-FB
    $22,359.00
    OPTIONS
    Gas Flushing
    $1,258.00
    High Pressure Seal
    $225.00
    Double Sealing Bar
    $1,350.00
    Double Seal Wire
    TBD

    USE OUR SECURE ORDER FORM TO ORDER

    PLEASE USE OUR SECURE ORDER FORM TO ORDER THIS ITEM.
