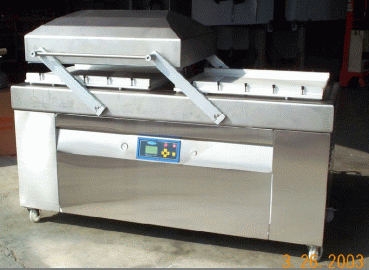

DC-860S-FB DOUBLE CHAMBER
VACUUM PACKAGING MACHINE
FEATURES:
  • Totally built in stainless steel construction
  • Flat chamber for easy cleaning
  • Bladder activated sealing
  • 10 program LED control system
  • Water proof (IP65) LCD control panel
  • Water-resistant (IP65) electrical box
  • Durable aluminum sealing bar
  • BUSCH vacuum pump
  • Soft air


    • TECHNICAL DATA SHEET
    Sealing length
    33.9" x 4 (860mm)
    Chamber height
    10" (250mm)
    Chamber size
    40.9" (1040mm) x 38.3" ( 975mm)(L x W)
    Sealing bar distance
    34" (860mm)
    Vacuum pump capacity
    160m3 / h
    Cycle time
    15~35 sec

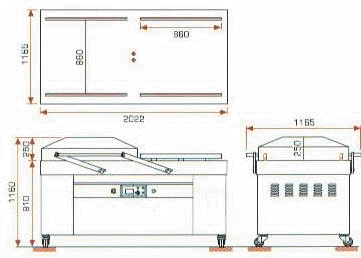

    Machine size
    78.74" (2022mm) x 39.37"(1165mm) x 46.46"(1160mm)(L x W x H)
    Voltage
    240v / 480v 3PH (Other voltages are available on request)
    Power
    7.0kw
    Weight
    1720 lbs (780 Kg)


    PRICING
    DC-800S-FB
    $16,487.00
    OPTIONS
    Gas Flushing
    $1,078.00
    High Pressure Seal
    $178.00
    Double Sealing Bar
    $1,170.00
    Automatic Lid Transfer System
    $3,402.00
    Double Seal Wire
    TBD

    USE OUR SECURE ORDER FORM TO ORDER


    PLEASE USE OUR SECURE ORDER FORM TO ORDER THIS ITEM.
