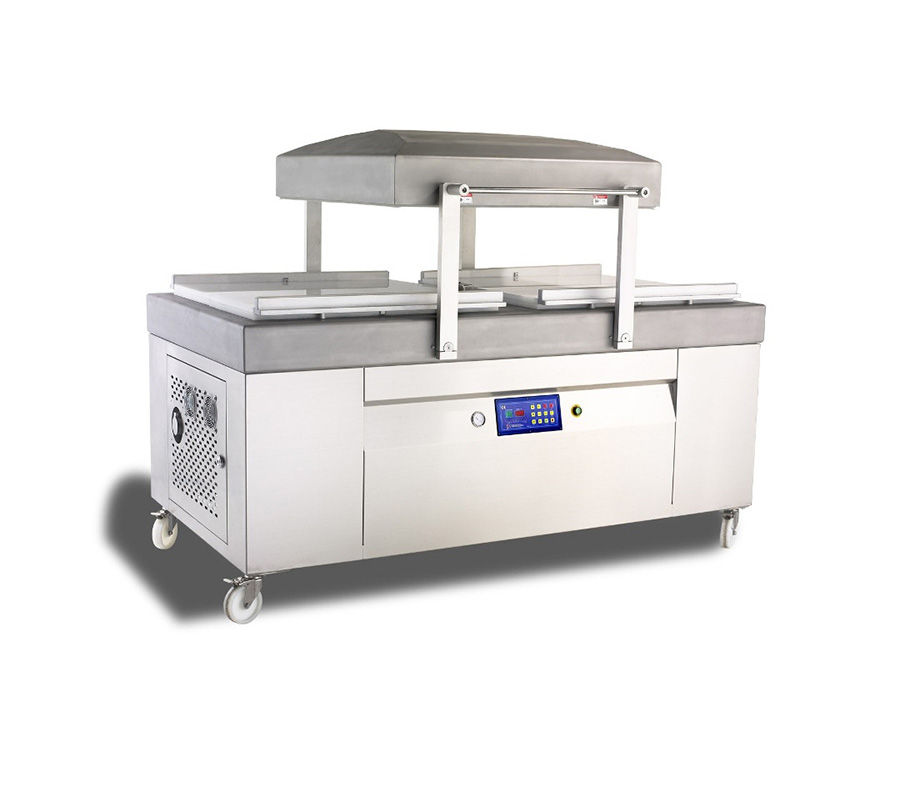

CHDC-860

TECHNICAL SPECIFICATIONS
Chamber size 41.5" x 40.7"
Chamber depth 10/255mm
Distance between seal bars 33/838mm
Seal bar length (A) 34.6x4/880mm
Seal bar length (A, A1) 34.6x4/880mm
Vacuum pump capacity 205m3/h (12hp10kw)
Voltage 230V/3ph/60Hz/42amp
Machine weight 2100 lbs. /955 kg
Machine size - L x W x H 83.0" x 51.0" x 48.0"
Standard Features:
  • Stainless Steel Construction
  • Flat chamber for easy cleaning
  • PNC-1 Computerized water resistant control panel
  • 10mm wide seals
  • Bladder activated sealing
  • Air Assist
  • High-density plastic filler plates
  • Pump overload warning indicator
  • Oil change indicator
  • Heavy-duty casters
  • Hide away control panel for easy wash down
Shipping costs will be calculated and advised via email.

PRICING
CHDC-860 (1 unit)
$19,990.00

OPTIONS:

Gas Flush: $1,105.00


OPTIONS:

  • Gas flush
  • Lid height
  • Mechanical knife cut-off system
  • Automatic lid transfer
  • Voltage
  • Pump size
  • Gas flush
  • Air regulator
  • Mechanical knife cut-off
  • Top and bottom seal
For options, please contact sales@sorbentsystems.com
