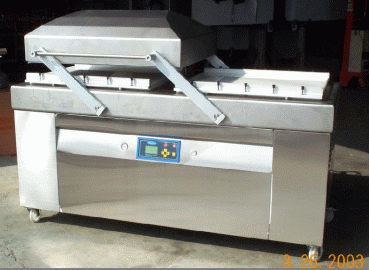

DC-800S-FB DOUBLE CHAMBER

VACUUM PACKAGING MACHINE
FEATURES:
  • Totally built in stainless steel construction
  • Flat chamber for easy cleaning
  • Bladder activated sealing
  • 10 program LED control system
  • Water proof (IP65) LCD control panel
  • Water-resistant (IP65) electrical box
  • Durable aluminum sealing bar
  • BUSCH vacuum pump
  • Soft air

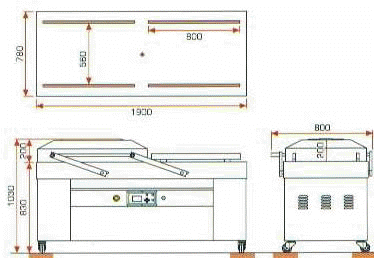

    • TECHNICAL DATA SHEET
    Sealing length
    31.5" x 4 (800mm)
    Chamber height
    8" (200mm)
    Chamber size
    38.5" (980mm) x 28.7" ( 730mm)(L x W)
    Sealing bar distance
    22" (560mm)
    Vacuum pump capacity
    100m3 / h
    Cycle time
    15~35 sec
    Machine size
    71.83" (1900mm) x 30.71"(780mm) x 40.55"(1030mm)(L x W x H)
    Voltage
    240v / 480v 3PH (Other voltages are available on request)
    Power
    5.0kw
    Weight
    485 lbs (220 kg)


    PRICING
    DC-800S-FB
    $12,014.00
    OPTIONS
    Gas Flushing
    $776.00
    High Pressure Seal
    $178.00
    Double Sealing Bar
    $952.00
    Automatic Lid Transfer System
    TBD
    Double Seal Wire
    TBD

    USE OUR SECURE ORDER FORM TO ORDER


    PLEASE USE OUR SECURE ORDER FORM TO ORDER THIS ITEM.
