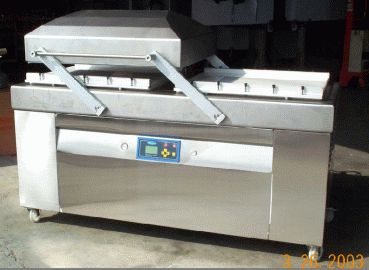

DC-800B-FB DOUBLE CHAMBER
VACUUM PACKAGING MACHINE
Features:
- Totally built in stainless steel construction
- Flat chamber for easy cleaning
- Bladder activated sealing
- 10 program LED control system
- Water proof (IP65) LCD control panel
- Water-resistant (IP65) electrical box
- Durable aluminum sealing bar
- BUSCH vacuum pump
- Soft air

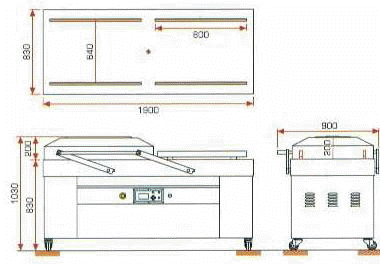

TECHNICAL DATA SHEET |
|
|---|---|
Sealing length
|
31.5" x 4 (800mm)
|
Chamber height
|
8" (200mm) |
|
Chamber size
|
38.5" (980mm) x 31.8" ( 810mm ) (L x W)
|
Sealing bar distance
|
25.2" (640mm)
|
Vacuum pump capacity |
100m3 / h |
Cycle time |
15~35 sec |
Machine size |
75.19" (1900mm) x 32.6"(830mm) x 40.55"(1030mm) (L x W x H) |
Voltage
|
240v / 480v 3PH (Other voltages are available on request)
|
Power
|
7.0kw
|
Weight
|
1058 lbs (480 kg)
|
PRICING |
|
|---|---|
|
DC-800B-FB
|
$12,014.00
|
OPTIONS |
|
|
Gas Flushing
|
$776.00
|
|
High Pressure Seal
|
$178.00
|
|
Double Sealing Bar
|
$952.00
|
Automatic Lid Transfer System
|
Contact Us
|
Double Seal Wire
|
Contact Us
|
