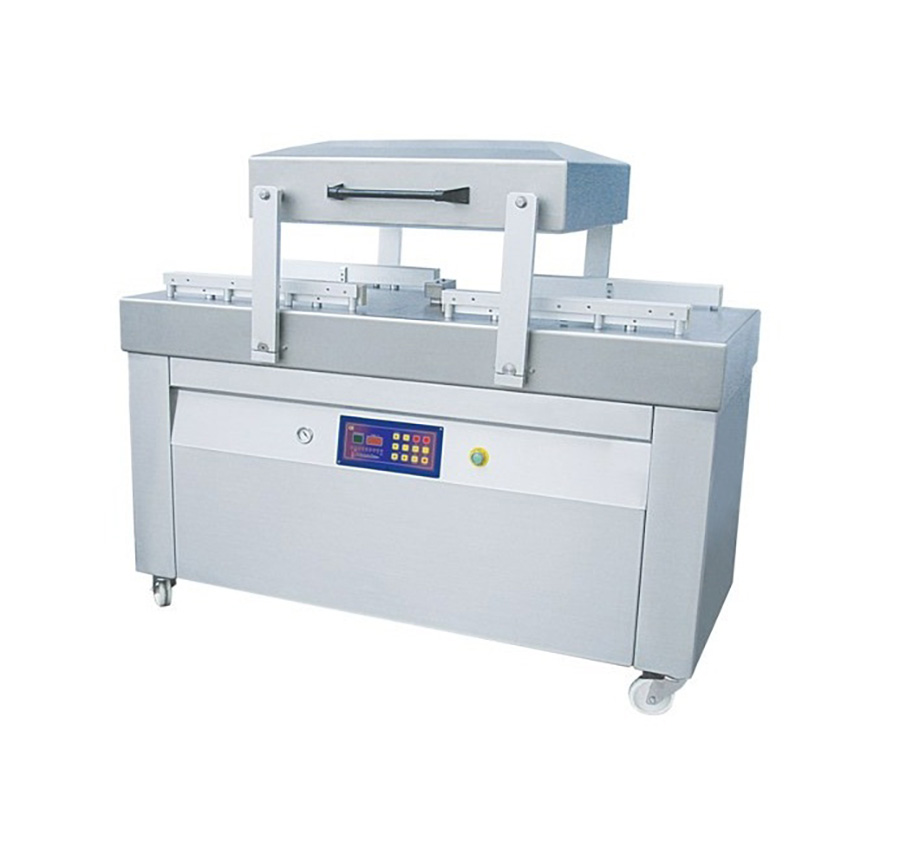

CHDC-640

TECHNICAL SPECIFICATIONS
Chamber size 32.2" x 29.0"
Chamber depth 8/200mm
Distance between seal bars 22/560mm
Seal bar length (A) 25.2x4/640mm
Seal bar length (A, A1) 25.2x4/640mm
Vacuum pump capacity 63m3/h (3hp/2.4kw)
Voltage 230V/3ph/60Hz/11amp
Machine weight 908 lbs. /412 kg
Machine size - L x W x H 62.0" x 36.0" x 44.0"
Standard Features:
  • Stainless Steel Construction
  • Flat chamber for easy cleaning
  • PNC-1 Computerized water resistant control panel
  • 10mm wide seals
  • Bladder activated sealing
  • Air Assist
  • High-density plastic filler plates
  • Pump overload warning indicator
  • Oil change indicator
  • Heavy-duty casters
  • Hide away control panel for easy wash down
  • Air regulator
Shipping costs will be calculated and advised via email.

PRICING
CHDC-640 (1 unit)
$13,560.00

OPTIONS:

Gas Flush: $1,053.00


OPTIONS:

  • Single Phase motor available
  • Gas flush
  • Chamber height
  • Mechanical knife cut-off system
  • Automatic lid transfer
  • Voltage
  • Pump size
  • Gas flush
  • Mechanical knife cut-off
  • Top and bottom seal
For options, please contact sales@sorbentsystems.com
