Continuous Band Sealers
> DBF - 900

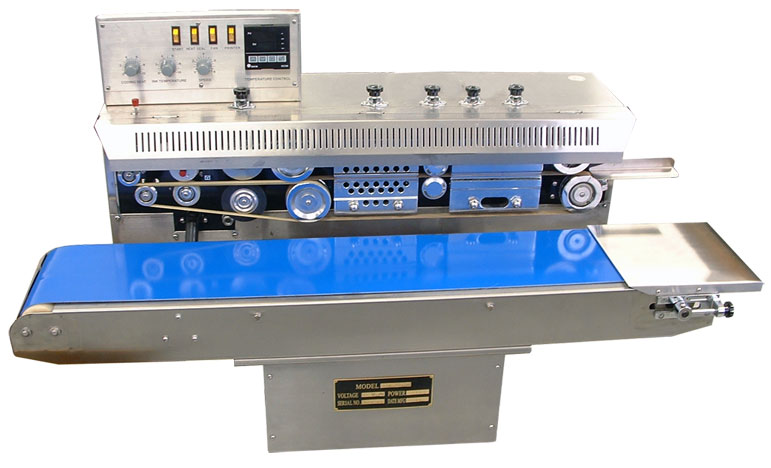

GBS1100
FRBM810
FRB770
DBF900
BandSealer Embossing
Click on image to enlarge

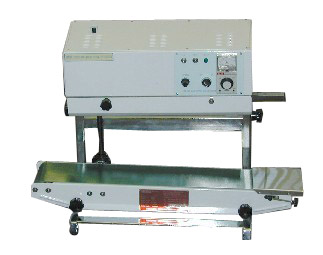

DBF-900 Vertical / Horizontal Tabletop Rapid Sealer
Product Specification Sheet
FEATURES:
All Metal Construction & Powder Coated Finishes
Solid State Temperature Control
Standard Embossing Attachment with limited typeset standard
(extra characters are available from our Spare Parts Department)
Fully Adjustable to Conveyor: Vertical - 8" / Horizontal - 1"
Also available in
Stainless Steel
(
NOTE:
This machine is shipped in the horizontal format,
but tooling is provided to assemble it in the vertical configuration.)
TECHNICAL DATA SHEET
Click Here for PRODUCT SPECIFICATION SHEET
Sealing Speed
0 - 12m/min.; 0 - 320"/min.
Sealing Width
6-12mm; min: 1/8" - max: 5/8"
Temperature Range
0 - 300 C
o
; 32 - 572 F
o
Voltage / Hz.
110V / 60Hz
Power
500W / 4.55 Amps
Max. Load / Pkg. on Conveyor
2.5 kg / 5.5 lbs
Machine size
32" x 15.75" x 11"
800 x 400 x 320 (mm)
Weight
64 lbs (29.09kg)
↓ VIDEO ↓
DBF-900 Videos
(Click on an image above to view the video)
PRICING
DBF-900 with VERTICAL KIT
Quantity
$905.00
Buy 2 and save $140.00!!
DBF-900 with VERTICAL KIT (220 VOLT UNIT)
Quantity
$1190.00
DBF-900 with VERTICAL KIT STAINLESS STEEL
Quantity
$1265.00
Spare Parts Kit for DBF-900
INCLUDED ITEMS:
P/N: BS-26 - 2 Urathane Drive Belts
P/N: BS-10 - 10 Teflon Bands
P/N: BS-PCV - 1 Printed Circuit Board
Quantity
$79.95
When purchased
with the machine
Spare Parts Kit for DBF-900
INCLUDED ITEMS:
P/N: BS-26 - 2 Urathane Drive Belts
P/N: BS-10 - 10 Teflon Bands
P/N: BS-PCV - 1 Printed Circuit Board
Quantity
$159.90
When purchased
individually
